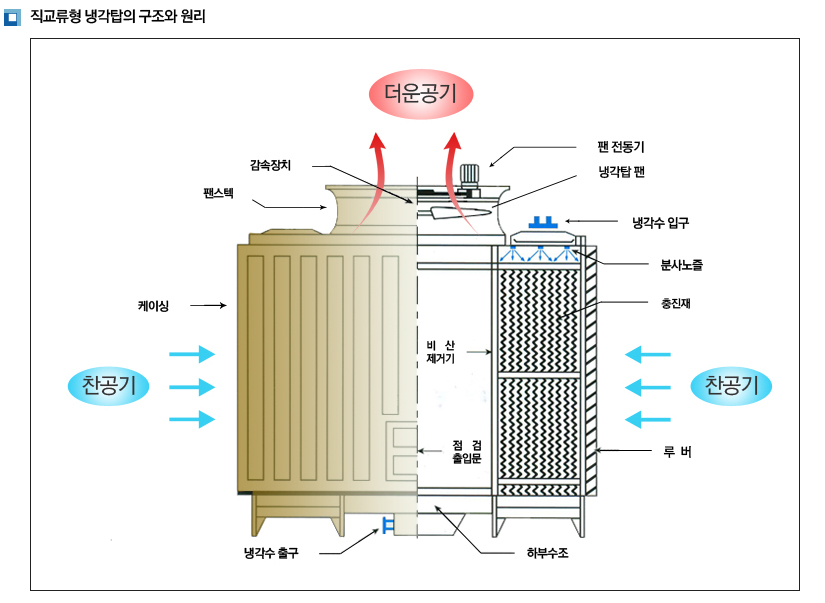

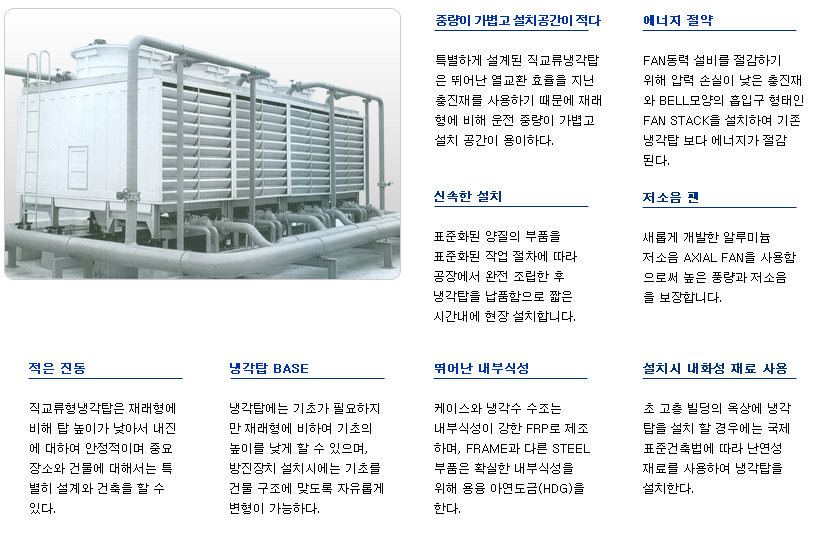

구분

단위

기    종

SKC-100

SKC-125

SKC-150

SKC-175

SKC-200

SKC-225

SKC-250

SKC-300

SKC-350

Capacity

Cooling Capacity

R/T

100

125

150

175

200

225

250

300

350

Heat Load

Kcal/hr

390,000

487,500

585,000

682,500

780,000

877,500

975,000

1,170,000

1,365,000

Water Flow Rate.

㎥/hr

78

97.5

117

136.5

156

175.5

195

234

273

Water Inlet Temp.

℃

37

Water Outlet Temp.

℃

32

Wet Bulb Temp

℃

27

Dimensions

Width [W]

㎜

1,500

1,800

2,100

2,400

2,600

Length [L]

㎜

3,820

4,020

4,220

4,520

4,700

Overall Heigh [H]

㎜

3,310

3,310

3,360

3,360

3,525

Materials

Casing

FRP

Framework Basin Frame

steel+H.D.G

Filler / Eliminator

PVC

Distribution Basin

FRP

Cold Water Basin

FRP

Louver

FRP

Fan

Blade, Hub:Al-alloy

Fan Stack

FRP

Fan assembly

FAN

Type

Axial-Folw

Diameter

1,300x1

1,500x1

1,700x1

2,000x1

2,200x1

Number of Blades

4

Fan Speed

513

570

513

570

490

437

435

Drive System

V-Belt Drive

MOTOR

Type

T.E.A.O [Totally Enclosed Airover Outdoor]

Power Source

3 phase, 4 Pole 220V / 380V / 440V

Rated Output

Hp

3x1

5x1

7.5x1

10x1

10x1

15x1

Quantity [Cell]

1

1

Distrivution System

Open gravity type

Piping diameter

Water Inlet Pipe

100Ax2

125Ax2

125Ax2

Water Outlet Pipe

125Ax1

150Ax1

200Ax1

200Ax1

Drain

50Ax1

50Ax1

65Ax1

65Ax1

65Ax1

Over Flow

50Ax1

65Ax1

65Ax1

65Ax1

65Ax1

80Ax1

Make-up Auto

25Ax1

25Ax1

40Ax1

40Ax1

Make-up Manual

25Ax1

25Ax1

40Ax1

40Ax1

Make-up

Evaporation Loss

%

0.87

Drift Loss

%

Less than 0.02

Weight

Dead Weight

kg

880

900

1,000

1,020

1,130

1,330

1,340

1,680

1,780

Operation Weight

kg

1,790

1,810

2,170

2,190

2,540

3,220

3,230

4,260

4,400

Water Storage Capecity

ℓ

810

1,040

1,260

1,700

2,080

※ 입구온도 : 37℃, 출구온도 : 32℃, 외기습구온도 27℃일때 1R/T= 3,900Kcal/hr 입니다.
※ 본 규격은 제품 개량으로 인해 일부 변경 될 수 있습니다.

구분			단위	기    종
				SKC-400	SKC-450	SKC-500	SKC-600	SKC-700	SKC-800	SKC-900	SKC-1000
Capacity	Cooling Capacity		R/T	400	450	500	600	700	800	900	1000
	Heat Load		Kcal/hr	1,560,000	1,755,000	1,950,000	2,340,000	2,730,000	3,120,000	3,510,000	3,900,000
	Water Flow Rate.		㎥/hr	312	351	390	468	546	624	702	780
	Water Inlet Temp.		℃	37
	Water Outlet Temp.		℃	32
	Wet Bulb Temp		℃	27
Dimensions	Width [W]		㎜	2,800			2,600x2	2,600x2	2,800x2	2,800x2	2,800x2
	Length [L]		㎜	5,720			4,710	4,710	5,720	5,720	5,720
	Overall Heigh [H]		㎜	3,334	3,654		3,525	3,525	3,334	3,654
Materials	Casing			FRP
	Framework Basin Frame			steel+H.D.G
	Filler / Eliminator			PVC
	Distribution Basin			FRP
	Cold Water Basin			FRP
	Louver			FRP
	Fan			Blade, Hub:Al-alloy
	Fan Stack			FRP
Fan assembly	FAN	Type		Axial-Folw
		Diameter	Ø㎜	2,400x1			2,200x2	2,200x2	2,400x2	2,400x2	2,400x2
		Number of Blades		4
		Fan Speed	rpm	395	435	460	437	435	395	435	460
		Drive System		V-Belt Drive
	MOTOR	Type		T.E.A.O [Totally Enclosed Air Over Outdoor]
		Power Source		3 phase, 4 pole 220V / 380V / 440V
		Rated Output	Hp	20x1			10x2	15x2	20x2	20x2	20x2
	Quantity			1			2		2
Distrivution System				Open gravity type
Piping diameter	Water Inlet Pipe			150Ax2			125Ax4		150Ax4
	Water Outlet Pipe			250Ax1			200Ax2	200Ax2	250Ax2
	Drain			80Ax1			65Ax2	65Ax2	80Ax2	80Ax2	80Ax2
	Over Flow			80Ax1			65Ax2	80Ax2	80Ax2	80Ax2	80Ax2
	Make-up Auto			50Ax1			40Ax2	40Ax2	50Ax2	50Ax2	50Ax2
	Make-up Manual			50Ax1			40Ax2	40Ax2	50Ax2	50Ax2	50Ax2
Make-up	Evaporation Loss		%	0.87
	Drift Loss		%	Less than 0.02
Weight	Dead Weight		kg	2,250	2,550	2,650	3,360	3,560	4,500	5,100	5,300
	Operation Weight		kg	5,550	6,050	6,250	8,520	8,800	11,100	12,100	12,500
Water Storage Capecity			ℓ	3,400			4,160	4,160	6,800	6,800	6,800
