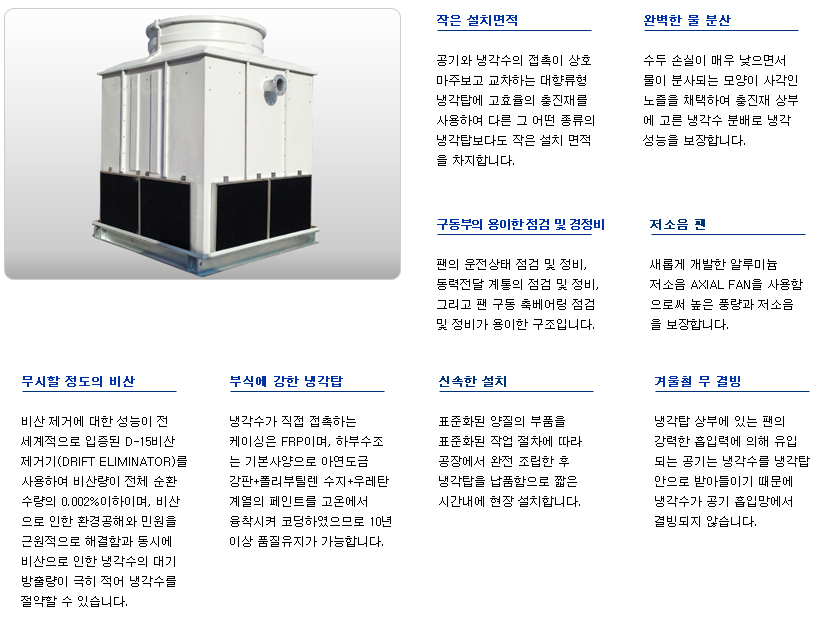

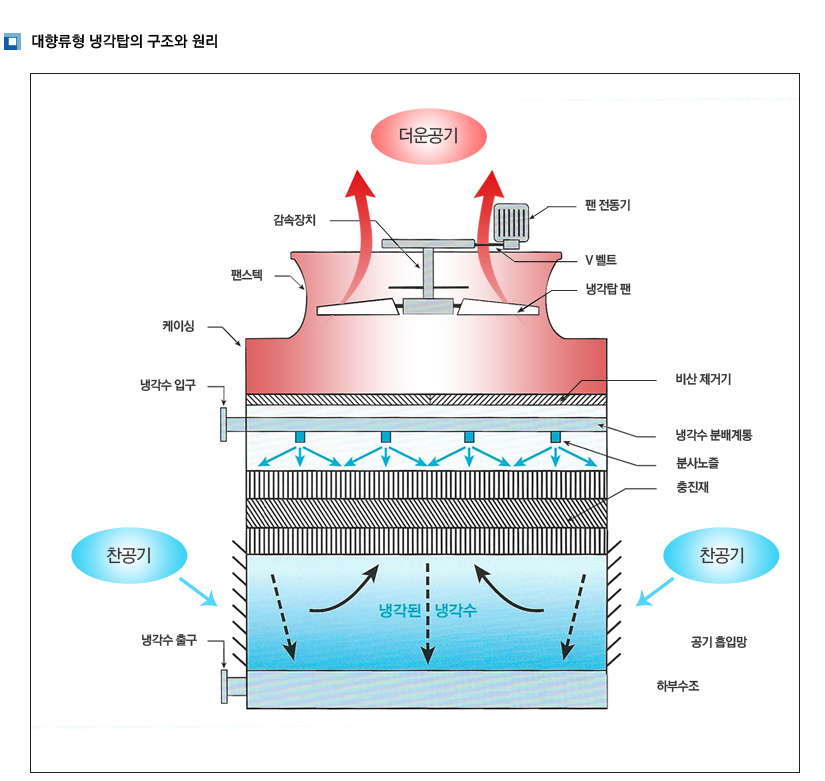

구분			단위	기    종
				SKM-80	SKM-100	SKM-125	SKM-150	SKM-175	SKM-200	SKM-225	SKM-250
Capacity	Cooling Capacity		R/T	80	100	125	150	175	200	225	250
	Heat Load		Kcal/hr	312,000	390,000	487,500	585,000	682,500	780,000	877,500	975,000
	Water Flow Rate.		㎥/hr	62.4	78	97.5	117	136.5	156	175.5	195
	Water Inlet Temp.		℃	37
	Water Outlet Temp.		℃	32
	Wet Bulb Temp		℃	27
Dimensions	Width [W]		㎜	1,890	2,050	2,200	2,550	2,550	3,350	3,350	4,150
	Length [L]		㎜				2,350	2,350	2,350	2,350	2,350
	Overall Heigh [H]		㎜	3,240		3,290	3,185	3,185	3,335	3,335	3,385
Materials	Casing			F.R.P
	Basin Support			Steel + H.D.G
	Filler / Eliminator			P.V.C
	Nozzle Pipe			P.V.C
	Spray Nozzle			P.V.C
	Cold Water Basin			F.R.P
	Louver			P.V.C
	Fan Assembly			Blade, Hub : Al-alloy
	Fan Stack			F.R.P
Fan assembly	FAN	Type		Axial-Folw
		Diameter	Ø㎜	1,300x1		1,500x1	1,700x1		2,000x1
		Number of Blades		4x1
		Fan Speed	rpm	510	510	516	443	443	430	470	470
		Drive System		V-belt Drive
	MOTOR	Type		T.E.A.O [Totally Enclosed Air Over Outdoor]
		Power Source		3 phase, 4 Pole, 220V / 380V / 440V
		Rated Output	Hp	3x1		5x1		7.5x1		10x1	10x1
	Quantity [Cell]			1
Distrivution System				Low Pressure Down Spray System
Piping diameter	Water Inlet Pipe			100Ax1	125Ax1		150Ax1			200Ax1
	Water Outlet Pipe			100Ax1	125Ax1		150Ax1			200Ax1
	Drain			50Ax1			50Ax1		65Ax1	65Ax1
	Over Flow			50Ax1			50Ax1		65Ax1
	Make-up Auto			25Ax1			25Ax1		40Ax1	40Ax1
	Make-up Manual			25Ax1			25Ax1		40Ax1	40Ax1
Make-up	Evaporation Loss		%	0.87
	Drift Loss		%	Less than 0.02
Weight	Dead Weight		kg	700	820	960	1,120	1,170	1,350	1,500	1,720
	Operation Weight		kg	1,400	1,670	1,950	2,370	2,480	2,870	3,000	3,760

※ 입구온도 : 37℃, 출구온도 : 32℃, 외기습구온도 27℃일때 1R/T= 3,900Kcal/hr 입니다.
※ 본 규격은 제품 개량으로 인해 일부 변경 될 수 있습니다.

구분

단위

기    종

SKM-300

SKM-350

SKM-400

SKM-450

SKM-500

SKM-600

SKM-700

SKM-800

SKM-900

SKM-1000

Capacity

Cooling Capacity

R/T

300

350

400

450

500

600

700

800

900

1000

Heat Load

Kcal/hr

1,170,000

1,365,000

1,560,000

1,755,000

1,950,000

2,340,000

2,730,000

3,120,000

3,510,000

3,900,000

Water Flow Rate.

㎥/hr

234

273

312

351

390

468

546

624

702

780

Water Inlet Temp.

℃

37

Water Outlet Temp.

℃

32

Wet Bulb Temp

℃

27

Dimensions

Width [W]

㎜

4,150

4,700

3,350

4,150

4,150

4,700

4,150

4,700

Length [L]

㎜

2,350

2,560

2,350x2

2,350x2

2,350x2

2,560x2

2,350x3

2,560x3

Overall Heigh [H]

㎜

3,385

3,635

3,335

3,335

3,385

3,635

3,385

3,635

Materials

Casing

F.R.P

Basin Support

Steel + H.D.G

Filler / Eliminator

P.V.C

Nozzle Pipe

P.V.C

Spray Nozzle

P.V.C

Cold Water Basin

F.R.P

Louver

P.V.C

Fan Assembly

Blade, Hub : Al-alloy

Fan Stack

F.R.P

Fan assembly

FAN

Type

Axial-Folw

Diameter

2,000x1

2,400x1

2,000x2

2,000x2

2,000x2

2,400x2

2,000x3

2,400x3

Number of Blades

4x1

6x1

4x2

4x2

4x2

6x2

4x3

6x3

Fan Speed

470

396

470

470

470

396

470

395

Drive System

V-belt Drive

MOTOR

Type

T.E.A.O [Totally Enclosed Air Over Outdoor]

Power Source

3 phase, 4 Pole, 220V / 380V / 440V

Rated Output

Hp

15x1

20x1

10x2

10x2

15x2

20x2

15x3

Quantity [Cell]

1

2

3

Distrivution System

Low Pressure Down Spray System

Piping diameter

Water Inlet Pipe

200Ax1

250Ax1

200Ax2

250Ax2

200Ax3

200Ax3

Water Outlet Pipe

200Ax1

250Ax1

200Ax2

250Ax2

200Ax3

200Ax3

Drain

65Ax1

65Ax2

65Ax3

65Ax3

Over Flow

65Ax1

65Ax2

65Ax3

65Ax3

Make-up Auto

40Ax1

40Ax2

40Ax3

40Ax3

Make-up Manual

40Ax1

40Ax2

40Ax3

40Ax3

Make-up

Evaporation Loss

%

0.87

Drift Loss

%

Less than 0.02

Weight

Dead Weight

kg

1,750

2,500

2,500

3,000

1,720x2

1,750x2

2,500x2

2,500x2

1,750x3

2,500x3

Operation Weight

kg

3,800

5,000

5,000

6,000

3,760x2

3,800x2

5,000x2

5,000x2

3,800x3

5,000x3
